12-12-5 Automatic Washing, Filling & Capping Bottling Machine
12-12-5 Automatic Washing, Filling & Capping Bottling Machine
Couldn't load pickup availability

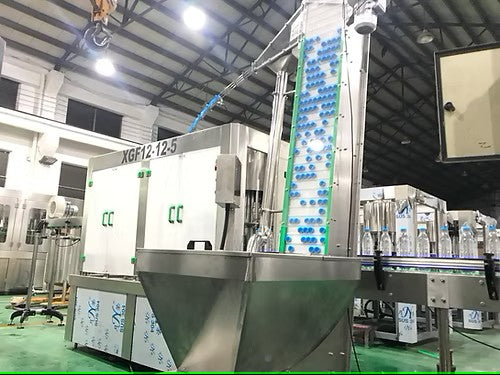

XGF 12-12-5 Automatic 3-in-1 Water Washing, Filling, and Capping Monoblock
Overview
The 12-12-5 Automatic Bottling Machine is a high-performance, fully integrated solution designed for modern production lines. Combining washing, filling, and capping into a single stainless steel monoblock, this machine is engineered for maximum efficiency, precision, and hygiene. Whether you are scaling a local water business or upgrading an industrial facility, the 12-12-5 provides the reliability and ROI needed in today's competitive market.
Key Attributes & Technical Specifications
| Parameter | Technical Specification |
|---|---|
| Model | 12-12-5 |
| Machine Type | 3-in-1 Monoblock (Washing-Filling-Capping) |
| Production Capacity | 5,000BPH (Bottles per Hour) |
| Washing Heads | 12 Heads |
| Filling Heads | 12 Heads |
| Capping Heads | 5 Heads |
| Applicable Bottle | PET Bottles (200ml - 2000ml) |
| Filling Principle | Micro-gravity / Atmospheric Pressure Filling |
| Main Motor Power | 4.0 KW |
| Control System | PLC + HMI Touch Screen (Mitsubishi/Siemens Components) |
| Material | Food-Grade SUS 304/316 Stainless Steel |
| Air Consumption | 0.4 - 0.6 m³/min |
| Dimensions (LWH) | 2230mm × 1630mm × 2000mm |
| Machine Weight | Approx. 2,400kg |
Industry Applications
This versatile bottling line is the preferred choice for:
-
Mineral & Purified Water Production
-
Non-Carbonated Soft Drinks
-
Fruit Juice Packaging
-
Light Oil & Liquid Fertilizer Bottling
-
Ready-to-Drink (RTD) Beverage Facilities
Why Shop With Sure Machines Solutions?
As a leader in industrial engineering solutions, Sure Machines provides more than just equipment; we provide production solutions.
-
Engineering Expertise: Directed by professional engineers to ensure every machine is optimized for durability and ROI.
-
6-Month Mechanical Warranty: We stand by our builds with a solid 6-month mechanical warranty on all equipment.
-
Local Support & Spares: Avoid long international downtimes with our dedicated technical support and readily available replacement parts.
-
Turnkey Solutions: From RO systems to end-of-line packaging, we provide the complete setup for your factory’s success.
For more information, Contact SURE MACHINES SOLUTIONS 08082284480
