18-18-6 Automatic Washing FIlling & Capping Bottling Machine
18-18-6 Automatic Washing FIlling & Capping Bottling Machine
Couldn't load pickup availability

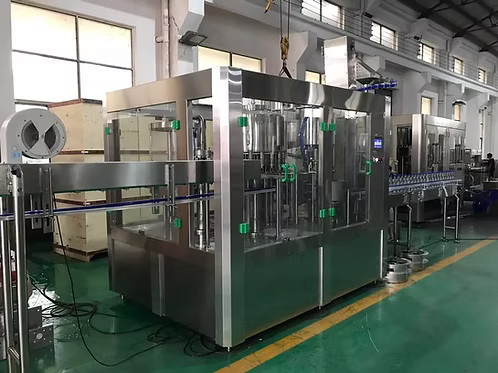

18-18-6 Automatic Water Washing, Filling & Capping Monoblock 3-in-1 Machine
Product Overview
The Sure Machines Solutions' 18-18-6 is a high-performance, fully automated liquid packaging solution designed for the modern production line. This 3-in-1 monoblock integrates bottle rinsing, gravity filling, and precision capping into a single, compact unit. Engineered for PET bottles, it is the industry standard for mineral water, pure water, and non-carbonated beverage production.
With the rise of Packaging Automation and Smart Manufacturing, this machine is equipped with advanced PLC controls and high-precision sensors to minimize product waste and maximize ROI.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Model | Sure Machines CGF 18-18-6 |
| Production Capacity | 6,000 – 8,000 Bottles Per Hour (BPH) |
| Rinsing / Filling / Capping Heads | 18 / 18 / 6 |
| Suitable Bottle Shape | Round or Square PET Bottles |
| Bottle Diameter / Height | Φ50–Φ90mm / 150–320mm |
| Filling Precision | ≤±5mm (Level Surface) |
| Capping Torque | 0.6 – 2.8Nm (Adjustable) |
| Total Power | 3.5 kW |
| Material Construction | Food-grade Stainless Steel SUS304 (SUS316 optional) |
| Control System | Siemens / Mitsubishi PLC & Touch Screen HMI |
| Dimensions (LWH) | 2400 x 1800 x 2250 mm |
| Machine Weight | Approx. 2,500 KG |
Top Industry Applications
This versatile system is ideal for businesses looking to scale their production in:
-
Beverage Industry: Still mineral water, spring water, and purified drinking water.
-
Food & Condiments: Non-viscous liquid juices, flavored waters, and liquid aminos.
-
Healthcare & Pharma: Large-batch distilled water and oral saline solutions.
-
Daily Chemical: Non-foaming liquid detergents and cleaners.
Key Features & Innovation
-
Intelligence: Equipped with an intelligent control system that allows for real-time performance monitoring and fault self-diagnosis, reducing unplanned downtime.
-
High-Precision Gravity Filling: Servo-driven components ensure a filling precision of ±0.5%, significantly reducing "overfill" waste.
-
Sustainable Manufacturing: Energy-efficient motors and optimized water-recycling rinsing heads support eco-friendly production goals.
-
Quick Changeover: Modular design allows operators to switch between different bottle sizes in under 15 minutes, essential for multi-SKU production.
Why Shop With Sure Machines Solutions ?
When you invest in equipment from Sure Machines, you are choosing engineering excellence and long-term reliability.
-
Professional Engineering Expertise: We provide technical insights that ensure your production line is optimized for efficiency and ROI.
-
6-Month Mechanical Warranty: We stand by our build quality with a comprehensive 6-month mechanical warranty on all equipment.
-
Local Support & Expertise: Based in Nigeria, we understand the local manufacturing landscape and provide responsive technical support.
