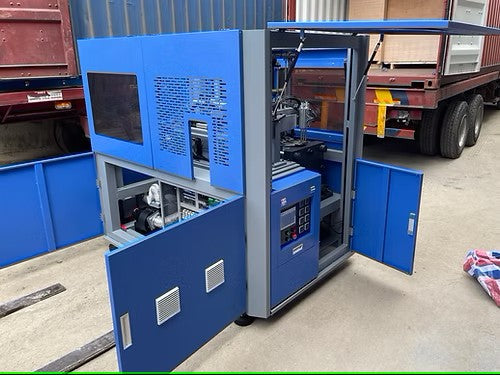

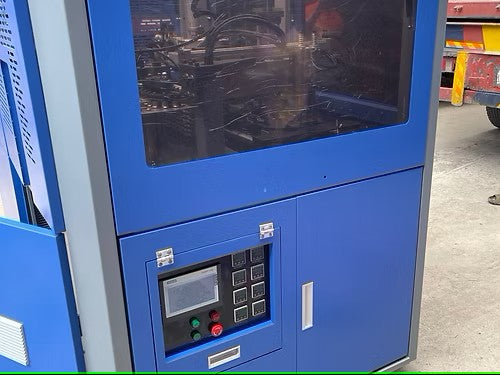

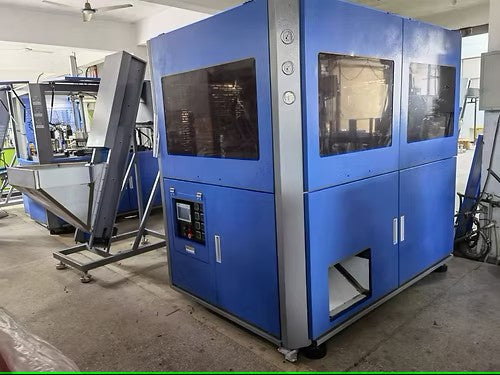

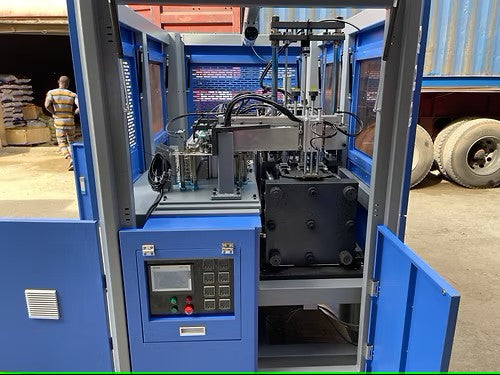

Automatic Plastic Bottle Making Machine

Automatic Plastic Bottle Making Machine used in production to make pet plastic bottles of different shapes and sizes.

Model:

OG-3 Automatic 3 Cavity Bottle Blowing Machine
ITEM            UNIT    OGM-3
        Theoretical output      Pcs/h   2200
PRODUCT Max. Volume     L       1.5
        Max. height     mm      360
        Max. diameter   mm      105
MOULD   Number of cavities      /       3
        Mould plate dimension (L*H)     mm      490*490
        Mould thickness mm      280
        Mould opening stroke    mm      220
ELECTRICAL      Power           220-380V/
50-60Hz
        Total Power     KW      18
        Heating Power   KW      15
AIR SYSTEM      Operation Pressure      Mpa     0.8-1.0
        Action Air Consuming    m3/min  ≥1.0
        Blowing Pressure        Mpa     2.6-3.0
        Blowing Air Consuming   m3/min  ≥1.6
MACHINE Main body dimension (L*W*H)     M       2.05*1.45*2.2
        Main body weight        KG      1500
        Preform Autoloader (L*W*H)      M       1.6*0.85*2.2
        Preform Autoloder weight        KG      200
