SURE MACHINES SOLUTIONS

COMPLETE BOTTLE WATER MACHINE SETUP

COMPLETE BOTTLE WATER MACHINE SETUP

Regular price ₦58,000,000.00 NGN
Regular price Sale price ₦58,000,000.00 NGN
Sale Sold out
Shipping calculated at checkout.
Quantity

Complete Bottle Water Production Line (3,000bph)

Product Overview

Our Complete Bottle Water Machine Setup is a turnkey industrial solution engineered for entrepreneurs looking to dominate the packaged drinking water market. This high-performance line integrates advanced Reverse Osmosis (RO) filtration with a precision 3-in-1 Monoblock Filling System to ensure your product meets the highest NAFDAC and global health standards.

Below are the list of equipment that make up this setup:

Machine Name / Model Primary Technical Specifications Estimated Power Rating

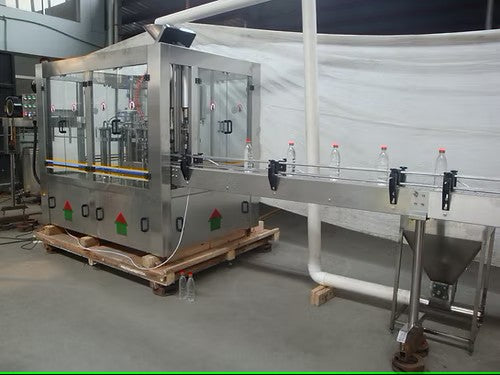

XGF8-8-3 Automatic Monoblock 3-in-1 system: Rinsing, Filling, Capping; Capacity: 2,000–3,000 BPH 3.5 kW

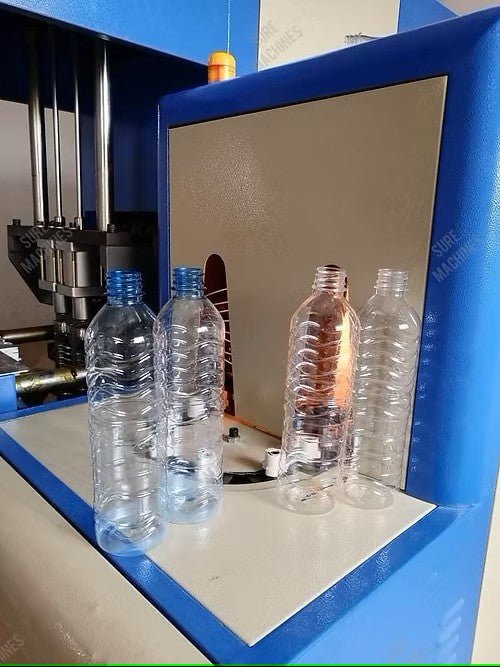

HZ880 2-Cavity PET Blower Semi-automatic; includes Blower, Heater, and 30-bar High-Pressure Compressor 15 kW – 18 kW (Total System)

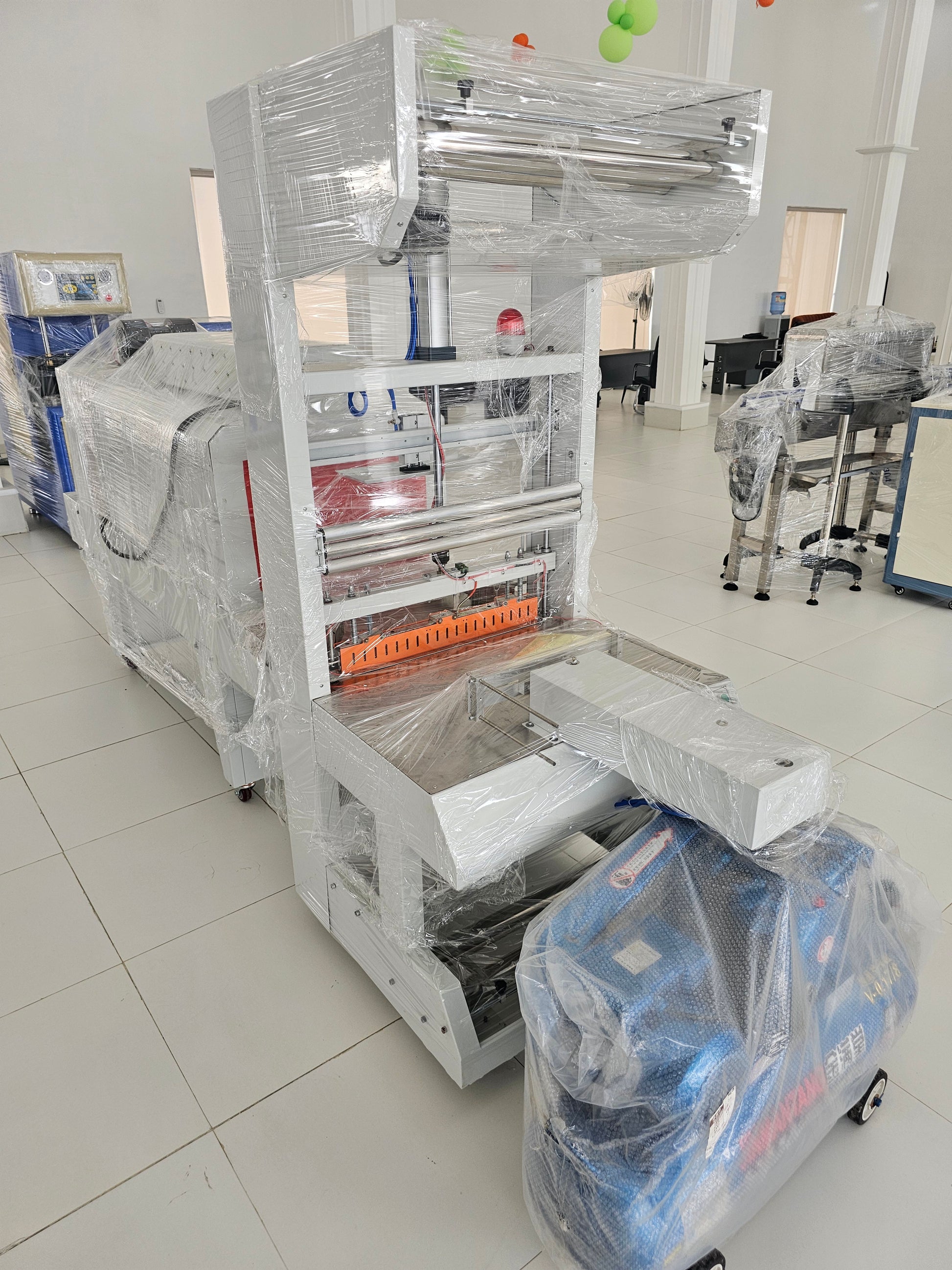

BZJ5038/BSE5038 Sleeve Wrapper Automatic sleeve wrapping with heavy-duty Shrink Tunnel; includes 2HP Compressor 18 kW

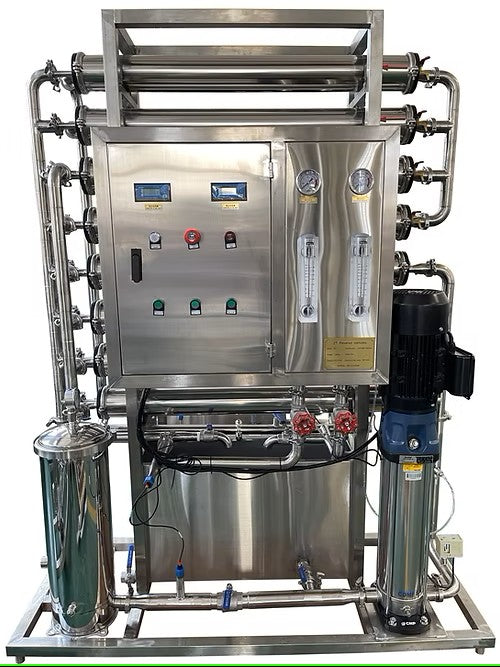

RO-2000 Reverse Osmosis System 2,000 L/H capacity; 8 Membranes; high-pressure stainless steel pump 3.0 kW
Filtran 6G Water Ozonator Ozone output: 6g/h; integrated air cooling and oxygen generation 150 W
DZBS1135A Steam Boiler & Tunnel Automatic steam generation for precision label shrinking 12 kW – 15 kW
HP241 Batch Coding Machine Thermal ribbon printing; 3-line coding for expiry/batch dates 200 W
Industrial Filtration Cylinders Stainless steel construction; Pair (Sand/Carbon); includes media chemicals N/A (Manual/Pressure)
ZXZY Ultraviolet Sterilizer Stainless steel chamber; high-intensity UV-C lamps for bacteria neutralisation 80 W – 120 W
20" Micro Filter Housings (20 PCS) 20-inch slim/big blue housings with 5-micron sediment/carbon cartridges N/A (Flow-based)
Pallet Truck Forklift Jack Manual hydraulic operation; Load Capacity: 2,000 kg (2 Tons) Manual
Stainless Water Pump (1HP) Grade 304/316 Stainless steel; High flow rate for treated water transfer 0.75 kW
Stainless Water Pump (1.5HP) Grade 304/316 Stainless steel; Heavy-duty transfer for raw/feed water 1.1 kW
2-Cavity PET Bottle Mould Precision CNC machined; tailored for 750ml (75cl) bottle designs N/A
Air Ultraviolet Sterilizer Wall-mounted or portable; designed for sanitation of the packing area 60 W – 100 W
5-in-1 Water Testing Meter Digital handheld; measures PH, EC, TDS, ORP, and Temperature Battery Operated

Request Installation Quote

KEY FEATURES FOR ENTERPRENEURS

  • Dual-Size Capability: Includes precision moulds for both 500ml (50cl) and 750ml (75cl) bottles.

  • Food-Grade Construction: All pumps and contact surfaces are high-grade Stainless Steel to ensure water purity and long equipment life.

  • Complete Accessories: Includes a Free Spare Parts Toolbox for the Blowing Machine and Sleeve Wrapper to ensure zero initial downtime.

  • Ambient Safety: Includes an Air UV Sterilizer specifically for your packing store to maintain a sterile environment for NAFDAC inspections.

The Sure Machines Solutions' Advantage

As an engineering-led firm, we don't just supply equipment; we provide solutions. This setup is optimized to balance filtration speed with packaging output, ensuring your utility costs are minimized while your output is maximized.

Includes Technical Consultation and Essential Spare Parts Kit.

Request Installation Quote

Speak with Engr. Manuel Lennon


For more information, Contact SURE MACHINES SOLUTIONS 08082284480
