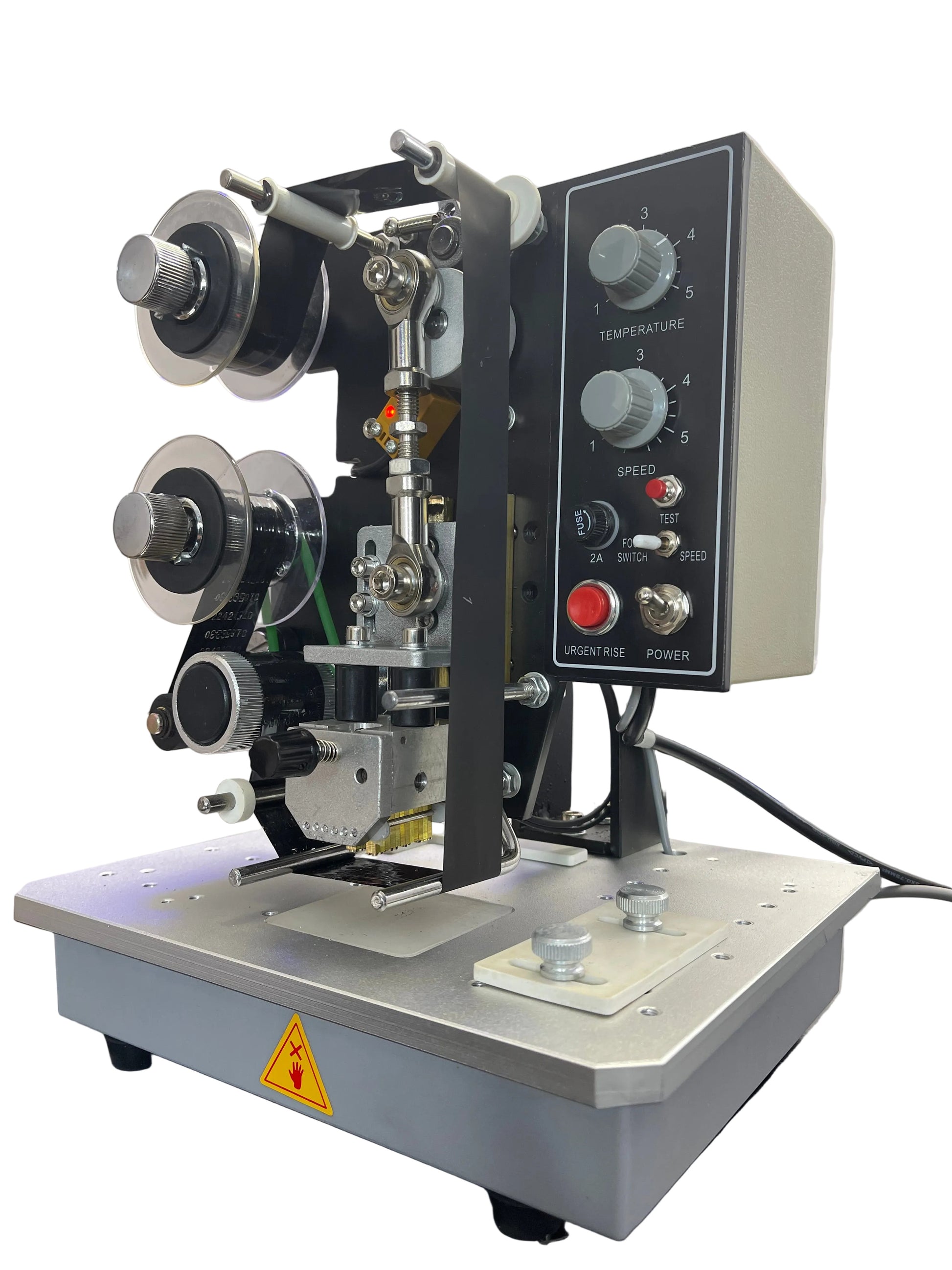

HP-241 I Hot Stamping Ribbon Coding Machine
HP-241 I Hot Stamping Ribbon Coding Machine
Couldn't load pickup availability
Eliminate manual errors and professionalize your packaging with the HP-241 Hot Stamping Ribbon Coder. Engineered for high-clarity printing of expiry dates and batch numbers on plastic, paper, and leather. Durable, easy to maintain, and designed for continuous production lines at Sure Machines standards
INSTALLATION REQUIREMENTS
Space Needed
- Standalone: 50cm × 50cm table space
- Integrated: Depends on main machine (we assess during installation)
- Ventilation recommended (heat dissipation)
Power Supply
- Standard 220V electrical outlet
- Dedicated circuit recommended
- Surge protector advised
- Generator compatible
Operating Environment
- Temperature: 15°C - 40°C
- Humidity: 30% - 85%
- Clean, dust-free area preferred
- Good lighting for character changes
MAINTENANCE & CARE
Daily Maintenance (5 minutes)
- Clean coding plate after production
- Remove ribbon debris
- Check temperature calibration
- Visual inspection for wear
Weekly Maintenance (15 minutes)
- Deep clean coding head
- Check ribbon tension
- Lubricate moving parts
- Verify character alignment
Monthly Maintenance (30 minutes)
- Complete system cleaning
- Replace worn ribbons
- Check electrical connections
- Test temperature accuracy
Expected Lifespan: 5-10 years with proper maintenance
TRAINING & SUPPORT
Included Training
- On-site installation and setup demonstration
- Character arrangement and changing tutorial
- Temperature adjustment for different materials
- Troubleshooting common issues
- Maintenance procedures
Training Duration: 1-2 hours (most operators master it immediately)
Ongoing Support
- Phone/WhatsApp technical support
- Video call troubleshooting
- Spare parts availability
- Technician visits (if needed)
FREQUENTLY ASKED QUESTIONS
Q: What's the difference between this and ink-based coders? A: Thermal ribbon coding is sanitary and clean without ink pollution - an economical and hygienic way of coding. No mess, no clogged nozzles, no ink expiration issues.
Q: How long does one ribbon last? A: One standard 30mm × 100m ribbon typically prints 800-1,500 codes, depending on character size and pressure settings.
Q: Can it print on wet or oily surfaces? A: Best results on dry surfaces. For oily surfaces, special ribbons available at extra cost.
Q: Is it difficult to change the date daily? A: Very easy! Letters can be changed easily
- simply swap the day/month character molds. Takes 30 seconds with practice.
Q: What if my packaging material doesn't work? A: The HP-241 works with 90% of packaging materials. Bring a sample during purchase for testing, or we can advise based on your material specs.
Q: Do I need special training? A: Basic operation is intuitive. Full mastery takes 1-2 hours of practice. We provide hands-on training.
Q: Can it be used for variable data (different dates on same day)? A: For small batches, yes (change characters manually). For high-volume variable data, consider our inkjet coding machines.
Q: Is it NAFDAC approved? A: The coding method (thermal transfer) is NAFDAC-compliant. The machine produces the required date/batch codes as specified by NAFDAC regulations.
Q: What about warranty? A: 6 months parts warranty. Technical support for life of machine.
COMPARISON WITH ALTERNATIVES
| Feature | HP-241 Thermal | Manual Stamps | Ink-Based Coders | Inkjet Printers |
|---|---|---|---|---|
| Price | ₦350,000 | ₦40,000 | ₦300,000+ | ₦800,000+ |
| Operating Cost | Very Low | Medium | High | Very High |
| Print Quality | Excellent | Poor-Fair | Good | Excellent |
| Speed | 120/min | 10-20/min | 60-100/min | 200+/min |
| Maintenance | Low | None | Medium | High |
| Cleanliness | Very Clean | Clean | Messy | Medium |
| Durability | High | Medium | Medium | Medium |
| Best For | Medium production | Very small batches | Variable data | High-speed lines |
HP-241 offers the best balance of cost, quality, and reliability for most Nigerian manufacturers.
PACKAGE OPTIONS
BASIC PACKAGE - ₦350,000
- HP-241 Coding Machine
- Standard character set (0-9)
- 1 starter ribbon roll
- Basic training
- 6 months warranty
PROFESSIONAL PACKAGE - ₦400,000
- HP-241 Coding Machine
- Extra character set
- 5 ribbon rolls
- Foot pedal accessory
- Advanced training
- 1-year warranty
- Save ₦30,000 vs buying separately
📦 DELIVERY & INSTALLATION
Delivery Timeline
- Lagos: 1-2 days
- Major cities: 3-5 days
- Nationwide: 5-7 days
Installation Service
- Lagos: Free Installation (asides delivery)
- Self-installation: Detailed manual + video support provided
ORDER NOW OR REQUEST MORE INFORMATION
Ready to Buy?
Call/WhatsApp: 08082284480
- Speak with our coding equipment specialists
- Get answers to your specific questions
- Place your order
- Schedule installation
Want to See It First?
Visit Our Lagos Showroom
- See the HP-241 in operation
- Test with your packaging materials
- Compare with other coding options
- Get expert recommendations
Need Technical Details?
WhatsApp : 08082284480
WHY CHOOSE SURE MACHINES SOLUTIONS?
✓ 13+ Years serving Nigerian manufacturers
✓ Genuine Equipment - No fake knock-offs
✓ After-Sales Support - We're here when you need us
✓ Competitive Pricing - Best value in the market
✓ Expert Installation - Done right the first time
✓ Training Included - Your team will be confident
✓ Spare Parts Stock - Ribbons and parts always available
✓ Nationwide Delivery - We serve all 36 states
✓ Business Consultation - Free advice on compliance and setup
DON'T RISK NON-COMPLIANCE
NAFDAC Requirements Are Getting Stricter:
- Fines up to ₦500,000 for missing date codes
- Product seizures and recalls
- Business license suspension
- Damage to brand reputation
Protect Your Business Today - Invest in Professional Date Coding
CUSTOMER SUCCESS STORIES
"We bought the HP-241 for our pure water factory. Installation was quick, training was thorough. Now our sachets look professional and NAFDAC-compliant. Best ₦350K we've spent!" - Adeola M., Lagos Pure Water Producer
"As a small cosmetics manufacturer, this machine transformed our business. Retailers now take us seriously because our packaging looks professional. ROI in 2 months!" - Ngozi O., Abuja Cosmetics Brand
"We've been using it for 3 years on our seasoning packaging line. Still works perfectly. Minimal maintenance, huge impact on our brand image." - Chief Okafor, Enugu Food Manufacturer
